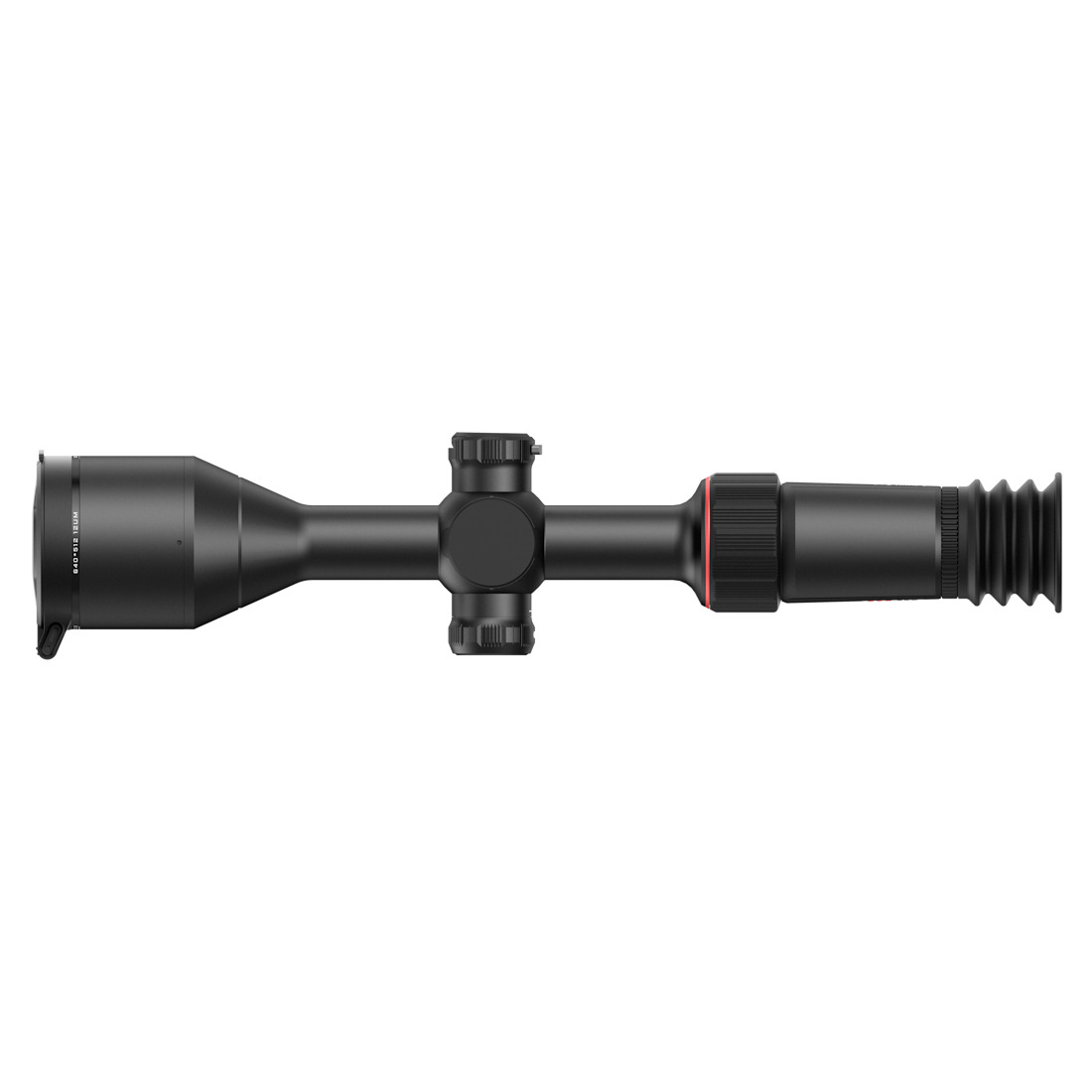

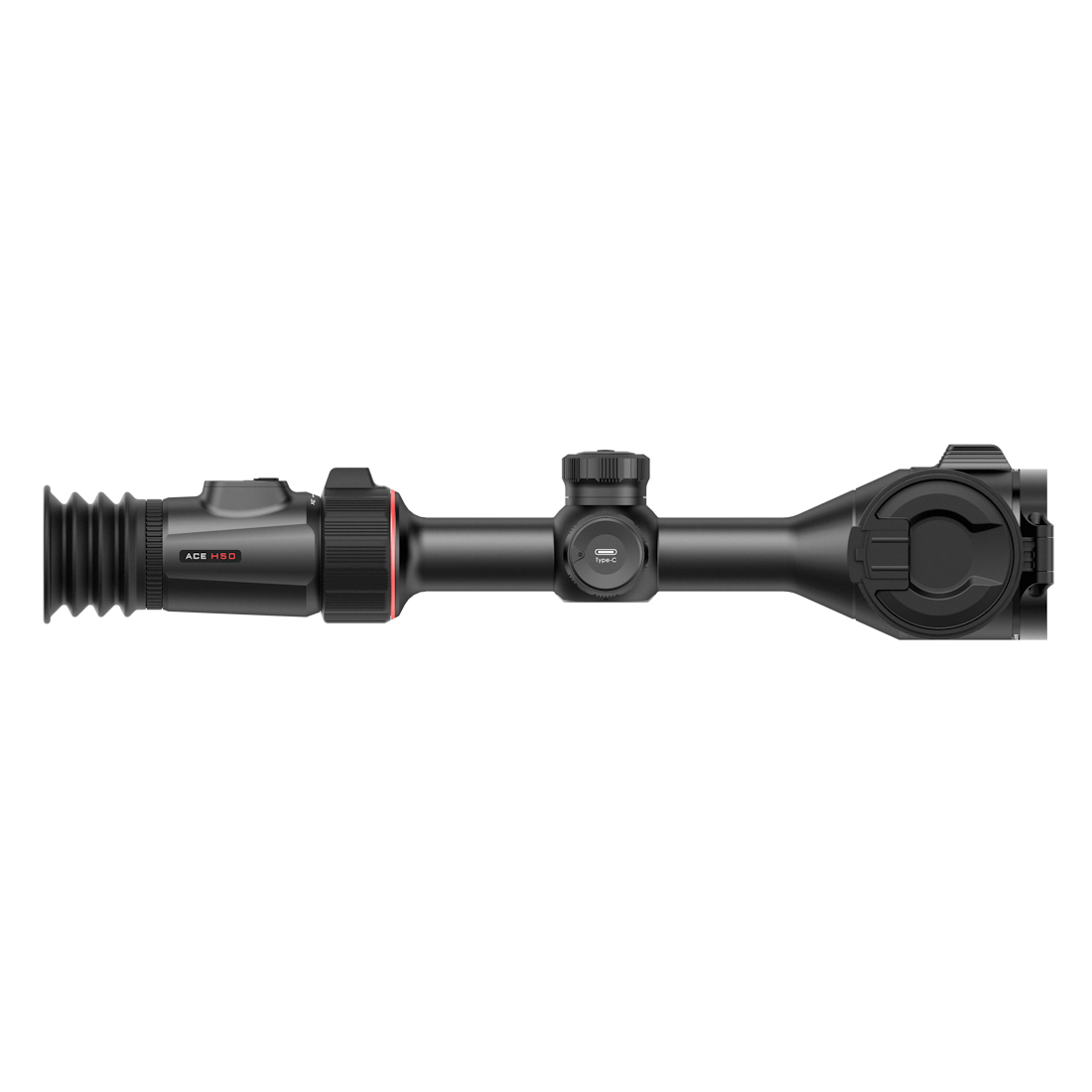

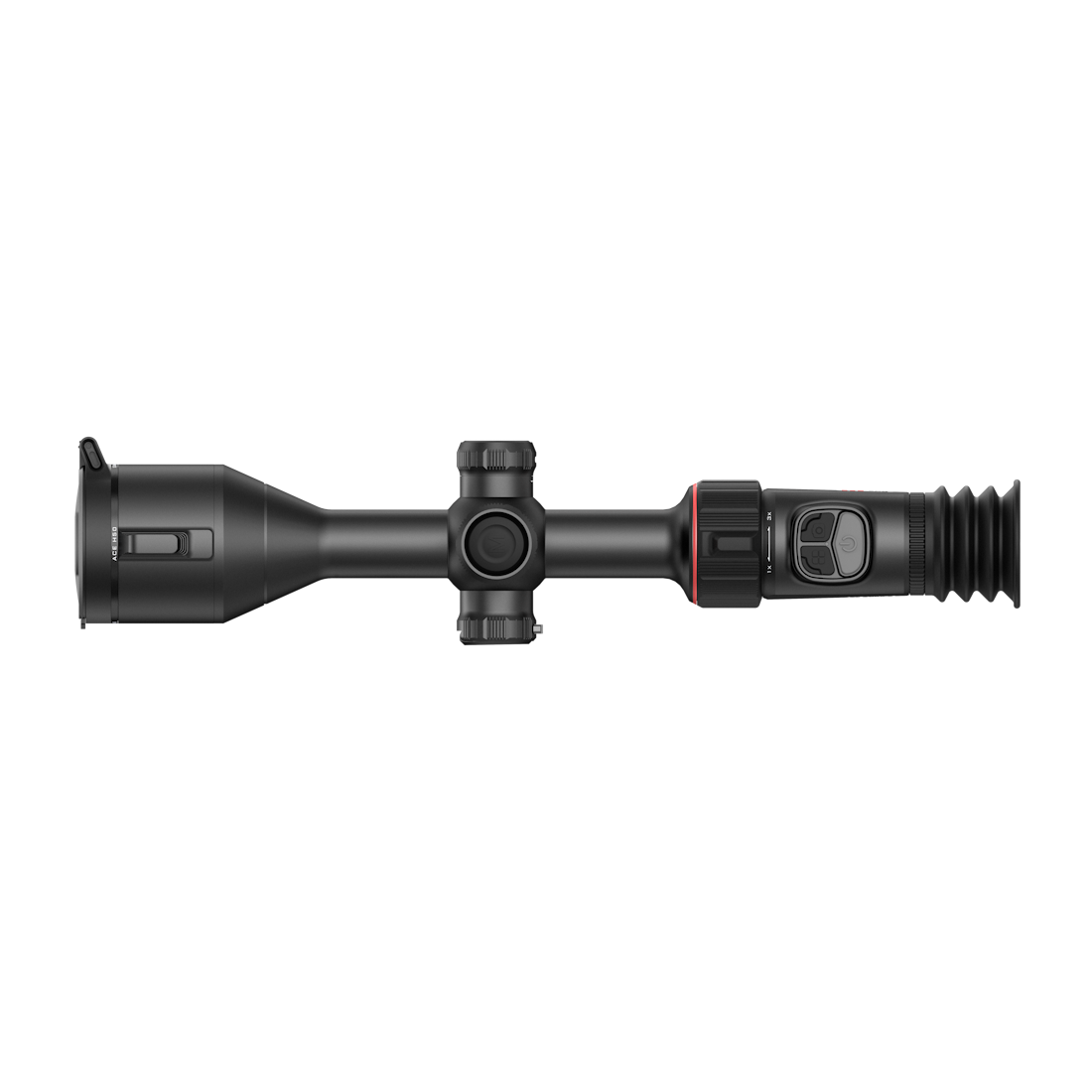

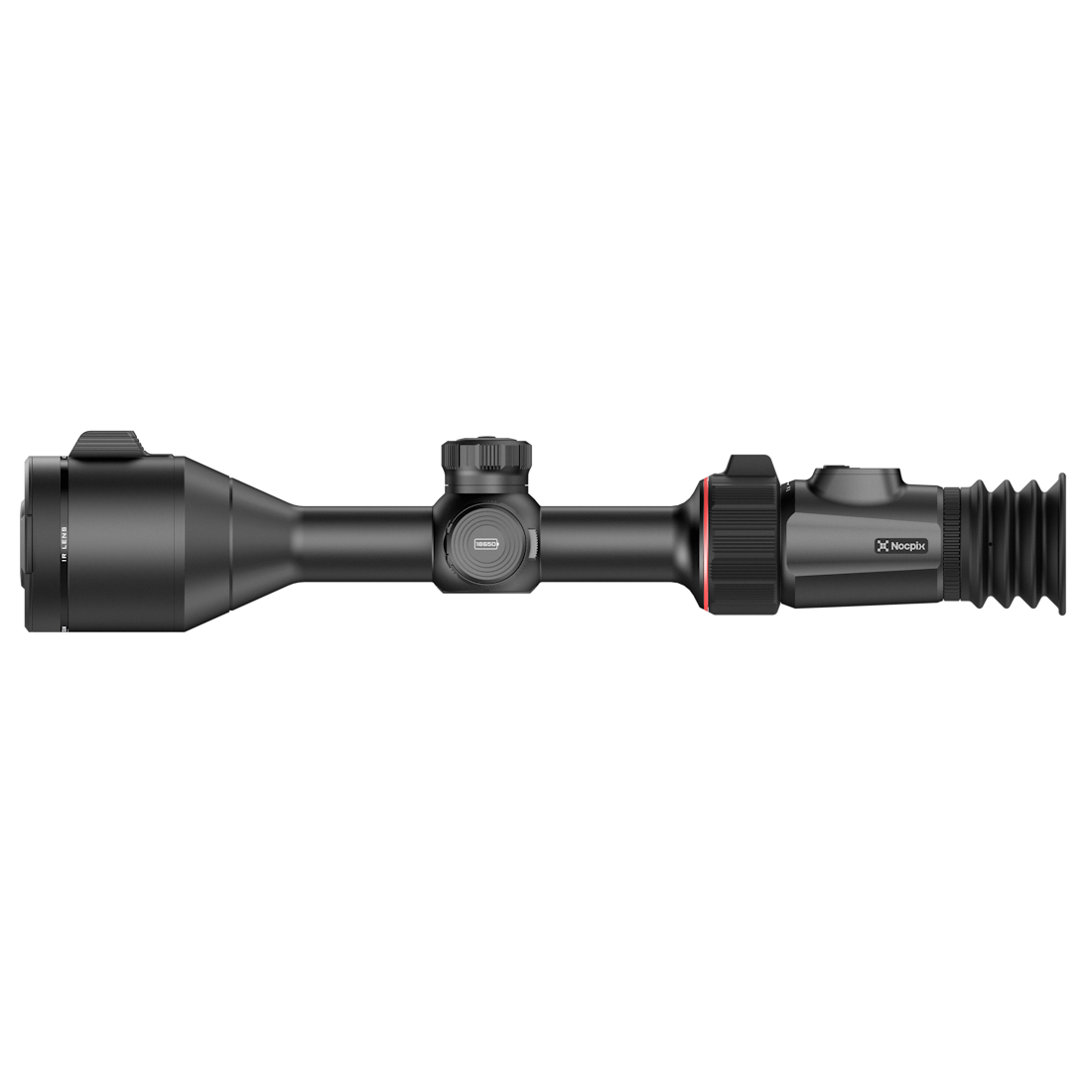

Nocpix ACE H50 Thermal Scope

Step into professional-grade thermal imaging with the Nocpix ACE H50 Thermal Scope, built for hunters and land managers who demand clarity and long-range performance in tough conditions. Powered by a high-sensitivity 640 × 512 @12µm thermal sensor with ultra-low NETD ≤15mK, it delivers sharp, reliable heat detection across open paddocks, treelines and distant ridgelines.

Designed for pig hunting, wild dog control and property pest management, the ACE H50 offers dependable long-range thermal performance in a rugged, field-ready platform suited to Australian conditions.

Why Choose the Nocpix ACE H50?

• High-sensitivity 640 × 512 @12µm thermal sensor
• Long 2600m detection range
• Reality+ and Vision+ imaging systems for enhanced clarity
• Smooth 60Hz refresh rate for scanning and tracking
• Large 2560 × 2560 AMOLED display for immersive viewing
• Built for hunting and pest control in Australia

High-Definition Thermal Imaging Performance

The ACE H50 is built around a 640 × 512 @12µm thermal sensor with NETD ≤15mK, delivering crisp thermal contrast and clear target separation. Heat signatures remain well defined through fog, rain, dust and complete darkness, providing dependable performance across changing environments.

Paired with a 50mm F0.9 Germanium lens, the ACE H50 offers a detection range of up to 2600 metres, making it well suited to long-distance observation and identification in open country and mixed terrain.

Advanced Image Processing & Display

Nocpix Reality+ and Vision+ imaging systems enhance fine thermal detail while suppressing background noise, resulting in a cleaner, more stable image. The 1.03″ 2560 × 2560 AMOLED circular display delivers a natural, distortion-free viewing experience with strong contrast and clarity during extended use.

Smooth magnification and consistent image quality help reduce eye strain when scanning or tracking movement over longer sessions.

Smooth Tracking & Field Viewing

With a 60Hz refresh rate, the ACE H50 delivers smooth image transitions when scanning terrain or following animal movement. This helps maintain a more stable and usable image when operating across open paddocks, scrub edges and wider country.

Built for Extended Field Use

Designed for long nights in the field, the ACE H50 features a dual battery system combining a built-in 4000mAh battery with a replaceable 18650 cell. This setup delivers up to 7 hours of runtime, with quick battery changes to minimise downtime during extended sessions.

Recording, Connectivity & Control

The ACE H50 supports photo, video and audio recording, with files stored directly to 64GB of internal memory. With Wi-Fi connectivity and support for the Nocpix mobile app, users can live stream, manage recordings and perform firmware updates directly from their phone.

Rugged, Field-Ready Construction

Housed in a magnesium alloy body, the ACE H50 is built to withstand demanding hunting and pest control conditions. Its IP67 waterproof and dustproof rating ensures reliable operation in rain, dust, heat and harsh Australian environments, while maintaining a balanced and manageable weight for rifle-mounted use.

Key Specifications

• Thermal Sensor: 640 × 512 @12µm
• NETD: ≤15mK
• Frame Rate: 60Hz
• Lens: 50mm F0.9
• Magnification: 3×–24×
• Detection Range: Up to 2600m
• Display: 1.03″ AMOLED, 2560 × 2560
• Colour Palettes: White Hot, Black Hot, Red Hot, Fusion, Green Mono, Red Mono
• Battery System: Built-in 4000mAh + replaceable 18650
• Runtime: Up to 7 hours
• Recording: Photo, video and audio
• Storage: 64GB internal
• Wi-Fi / App: Yes (Nocpix App)
• Housing: Magnesium alloy
• Protection Rating: IP67 waterproof and dustproof
• Weight: Approx. 1100g with battery
• Dimensions: 365 × 90 × 68 mm
