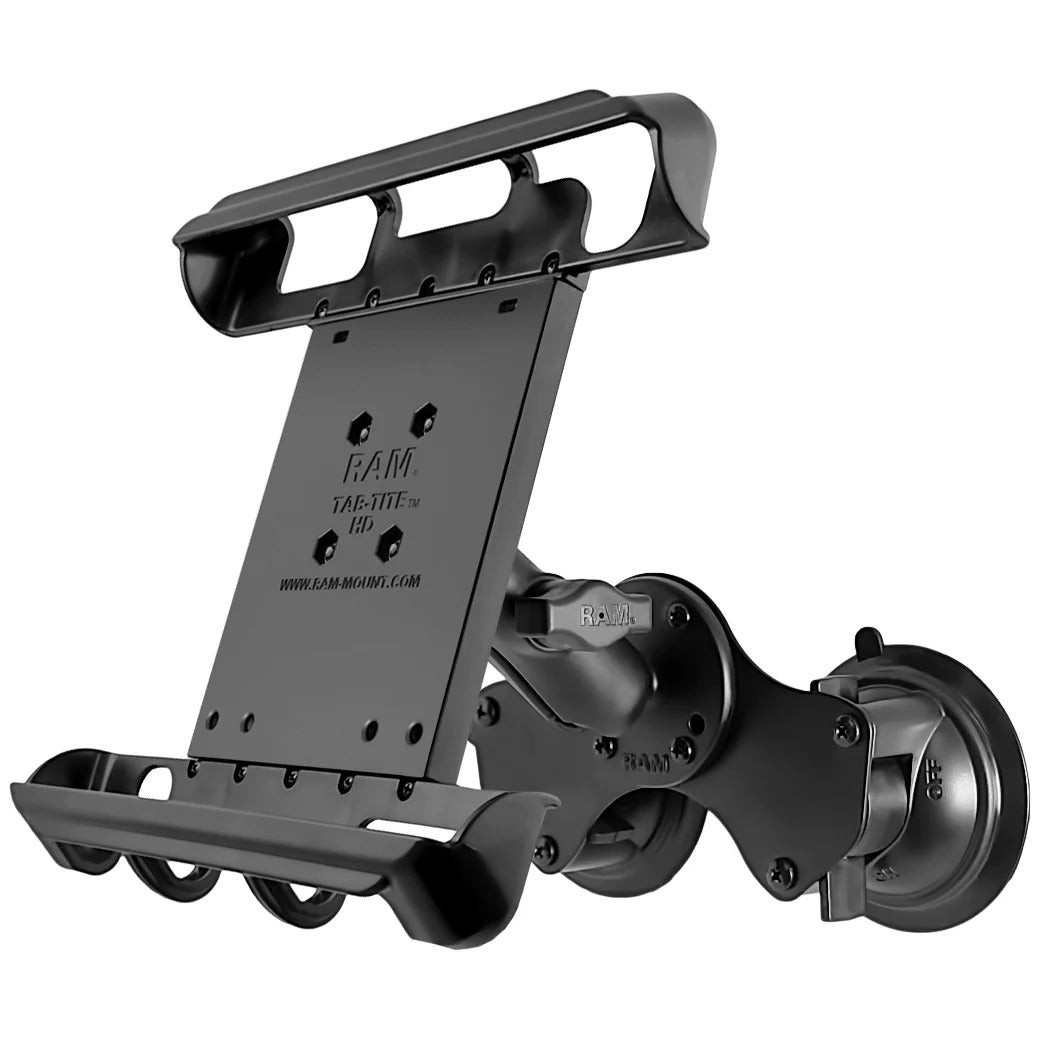

RAM Mounts RAM-B-189-TAB8U Tab-Tite Dual Suction iPad Pro 9.7 Mount
Choose options
Heavy-duty in-vehicle suction mount with Tab-Tite™ spring cradle for tablets with cases. The RAM-B-189-TAB8U combines a rugged dual twist-lock suction cup base with RAM’s modular ball-and-socket system and a Tab-Tite™ universal spring-loaded cradle, giving you a secure, adjustable tablet mounting solution for dashboards, windscreens and other smooth surfaces. Designed to work with larger tablets even when in protective cases, this kit delivers near-infinite viewing angles and strong holding power when you’re on the move.
Browse our full range of RAM Mounts vehicle mounting systems →
Why Choose the RAM-B-189-TAB8U Tab-Tite Dual Suction Mount?
- Dual suction cup base for a strong grip on glass and smooth surfaces.
- Tab-Tite™ universal spring-loaded tablet cradle holds tablets in heavy-duty cases.

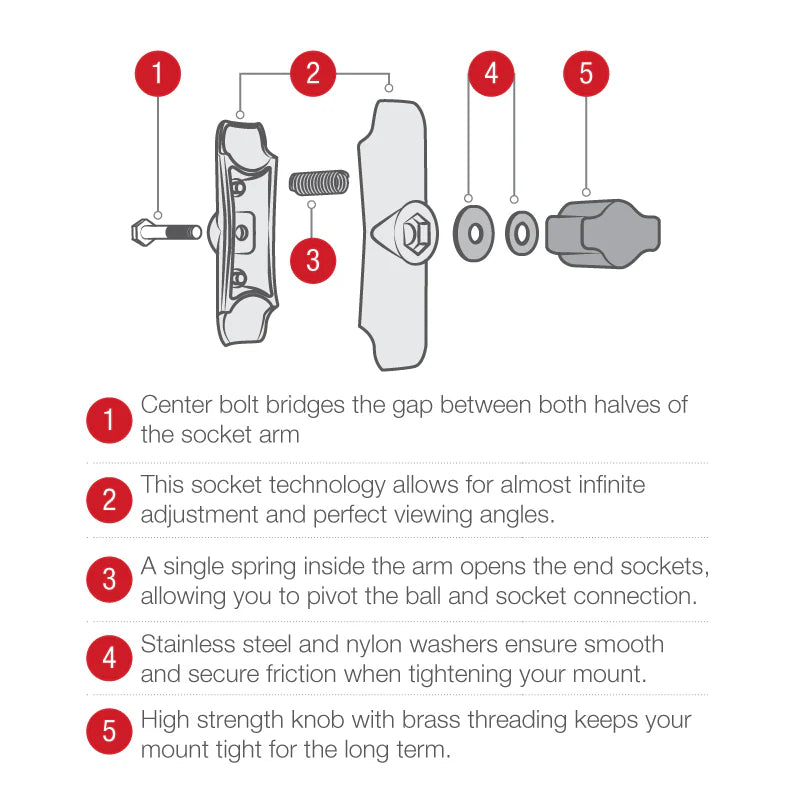

- RAM patented 1" ball and socket system allows adjustable viewing angles.
- Interchangeable support cups to maintain access to ports and controls.
- Backed by RAM Mounts lifetime warranty
Specifications
- Cradle fit range: Height 9″–11.5″ (229–292 mm), Width 6.38″–8.31″ (162–211 mm), Depth 0.13″–1.12″ (3–28 mm)
- Suction cup diameter: (2) 3.3″ cups (84 mm each), total width ~7.95″ (202 mm)
- Socket-to-Socket length: ~3″ (76 mm)
- Ball size: B-Size (1″ / 25 mm)
- Weight capacity: Standard – ~2 lb (0.9 kg) / Heavy-Duty – ~1 lb (0.45 kg)
- Materials: Marine-grade aluminium & high-strength composite
- Weight: 1.99 lb (0.90 kg)
What’s Included
- 1 × Tab-Tite™ universal spring-loaded tablet cradle
- 1 × Double socket arm (B-size)
- 2 × Round base with 1" B ball
- 1 × Dual twist-lock suction cup base
Ideal For
Perfect for pest control operators running iPads for thermal viewing, heli-shooting support and mapping, as well as tradies, fleet vehicles and 4WD touring — this robust in-vehicle tablet mount stays secure over bumps, braking and rough terrain while delivering excellent viewing flexibility.
Looking to build a complete mounting system with RAM arms and accessories? Explore our RAM Mounts vehicle mounting systems →
Additional Compatibility Info:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
