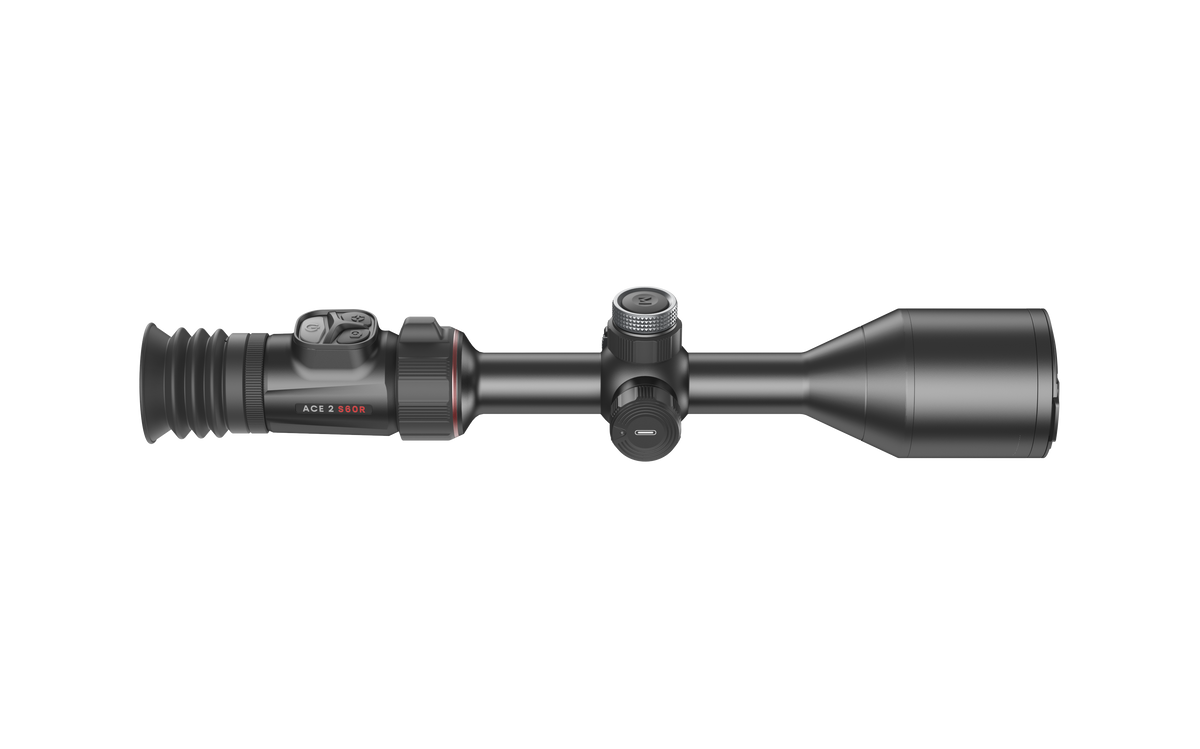

Nocpix ACE 2 S60R Thermal Riflescope

The Nocpix ACE 2 S60R combines a high-resolution 1280 × 1024 thermal sensor with a 60mm F1.0 objective lens, integrated laser rangefinder and advanced ballistic calculation.

Its 60mm lens provides a detection range of up to 3,100 metres, while the wide 14.7° × 11.7° field of view provides strong situational awareness. The ≤12mK thermal sensitivity and R+ 2.0 image processing help reveal fine details in difficult weather and low thermal contrast.

The traditional riflescope-style design includes a central focus system, magnesium alloy body and Ocular Zoom 2.0. The S60R weighs 980g and provides up to seven hours of operating time using its built-in battery and replaceable 18650 battery.

Key Features

• 1280 × 1024 thermal resolution
• 12μm pixel pitch
• ≤12mK thermal sensitivity
• 30/60Hz frame rate
• 60mm F1.0 objective lens
• 3,100m detection range
• Integrated 1,200m laser rangefinder
• Ballistic Calculation 2.0
• Ocular Zoom 2.0
• Dual Clarity imaging modes
• R+ 2.0 AI image processing
• Central focus adjustment
• Intelligent target tracking through the Nocpix app
• Magnesium alloy body
• 64GB internal storage
• Recoil activated video recording
• IP67 weather protection
• Rated for recoil energy up to 7,000 joules

Ocular Zoom 2.0

Ocular Zoom 2.0 combines optical and digital zoom as the magnification ring turns. Screen icons automatically adjust to remain aligned with the optical view, maintaining a natural reticle size and full interface visibility.

The system provides 60mm of eye relief and a 10mm exit pupil for a comfortable, daytime riflescope-style viewing experience.

Dual Clarity Imaging

The ACE 2 S60R offers two dedicated imaging modes:

• Still Mode: Extends the detector exposure time to reveal finer textures, sharper edges and small temperature differences. This helps identify partially obscured targets and animals with low thermal contrast.
• Motion Mode: Produces smoother imaging when observing moving animals, reducing blur and helping the shooter follow movement more clearly.

R+ 2.0 Image Processing

Nocpix’s R+ 2.0 algorithm enhances image detail while reducing visual noise. The system automatically adjusts image processing for different environments, helping improve target recognition in challenging conditions such as rain and fog.

Integrated LRF and Ballistic Calculation

The upgraded LRF 2.0 provides distance measurements out to 1,200 metres with ±1 metre accuracy.

Ballistic Calculation 2.0 uses the measured distance together with pitch angle, wind drift and environmental information to calculate a corrected aiming point. This assists with uphill, downhill and crosswind shots.

Intelligent Tracking

After ranging a target, its position can be transferred to the Nocpix app. The tracking interface displays the live distance and bearing between the hunter and the ranged location.

The app stores coordinate information from the latest ten rangefinder readings, helping the hunter return to a selected target location when visibility or terrain makes recovery difficult.

Recording and Connectivity

• Photo and video recording
• Recoil activated video
• On-device gallery
• 64GB internal memory
• Wi-Fi and Nocpix app support
• Simplified app connection using Bluetooth and Wi-Fi
• USB-C external power support

Specifications

• Thermal Resolution: 1280 × 1024
• Pixel Pitch: 12μm
• Thermal Sensitivity: ≤12mK
• Frame Rate: 30/60Hz
• Objective Lens: 60mm F1.0
• Field of View: 14.7° × 11.7°
• Linear Field of View at 100m: 25.6 × 20.5m
• Optical Magnification: 2–4×
• Maximum Magnification: 28×
• Detection Range: 3,100m
• Display: 1.03-inch round AMOLED
• Display Resolution: 2560 × 2560
• Eye Relief: 60mm
• Exit Pupil: 10mm
• Diopter Adjustment: -5 to +4D
• Laser Rangefinder: Up to 1,200m, ±1m
• Laser Safety Class: Class 1
• Ballistic Calculation: Supported
• Battery: Built-in 3650mAh battery plus replaceable 3650mAh 18650 battery
• Maximum Operating Time: Up to 7 hours at 22°C
• External Power: 5V USB-C
• Internal Memory: 64GB
• Weather Rating: IP67
• Operating Temperature: -20°C to +50°C
• Maximum Recoil Energy: 7,000 joules
• Dimensions: 397 × 73 × 92mm
• Weight: 980g
