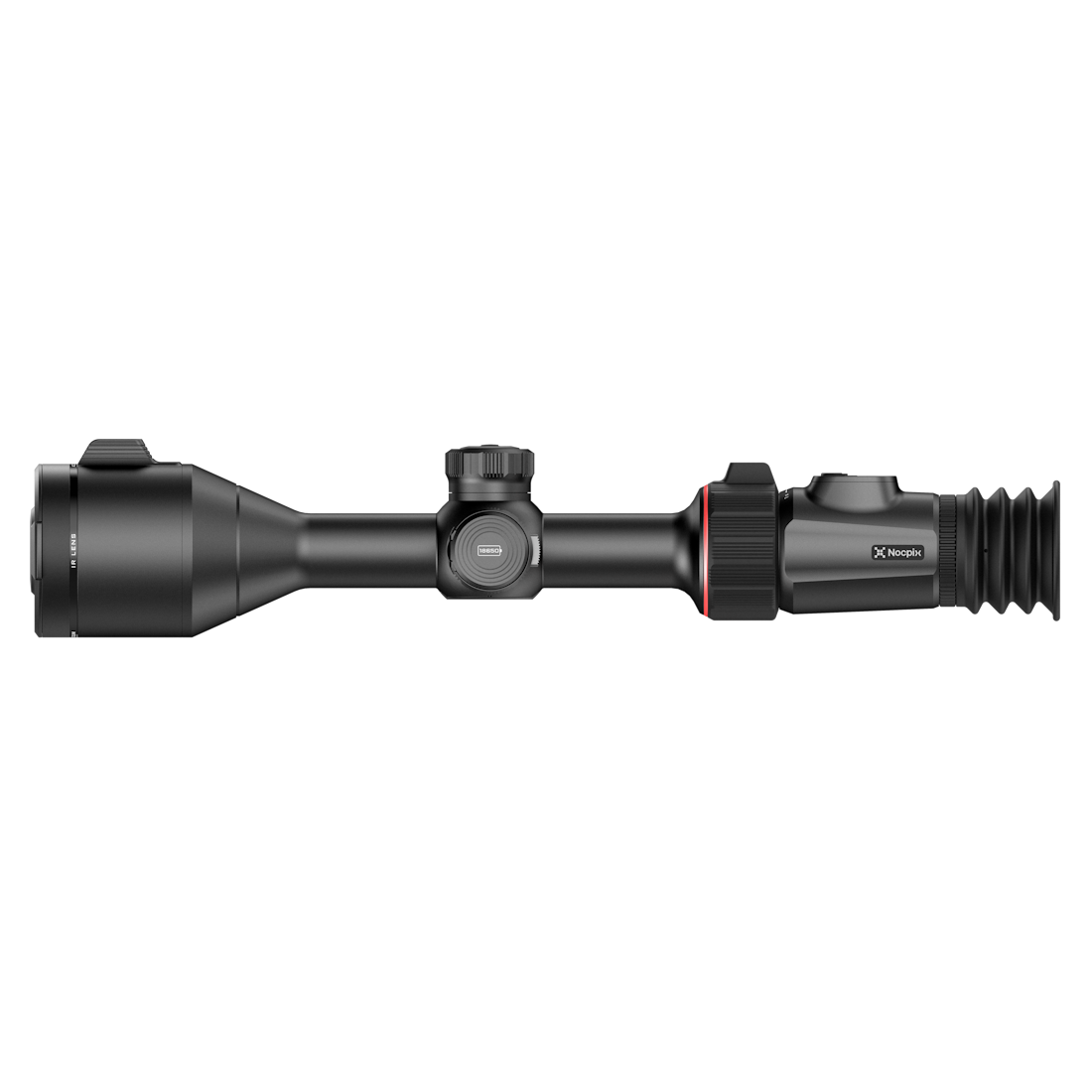

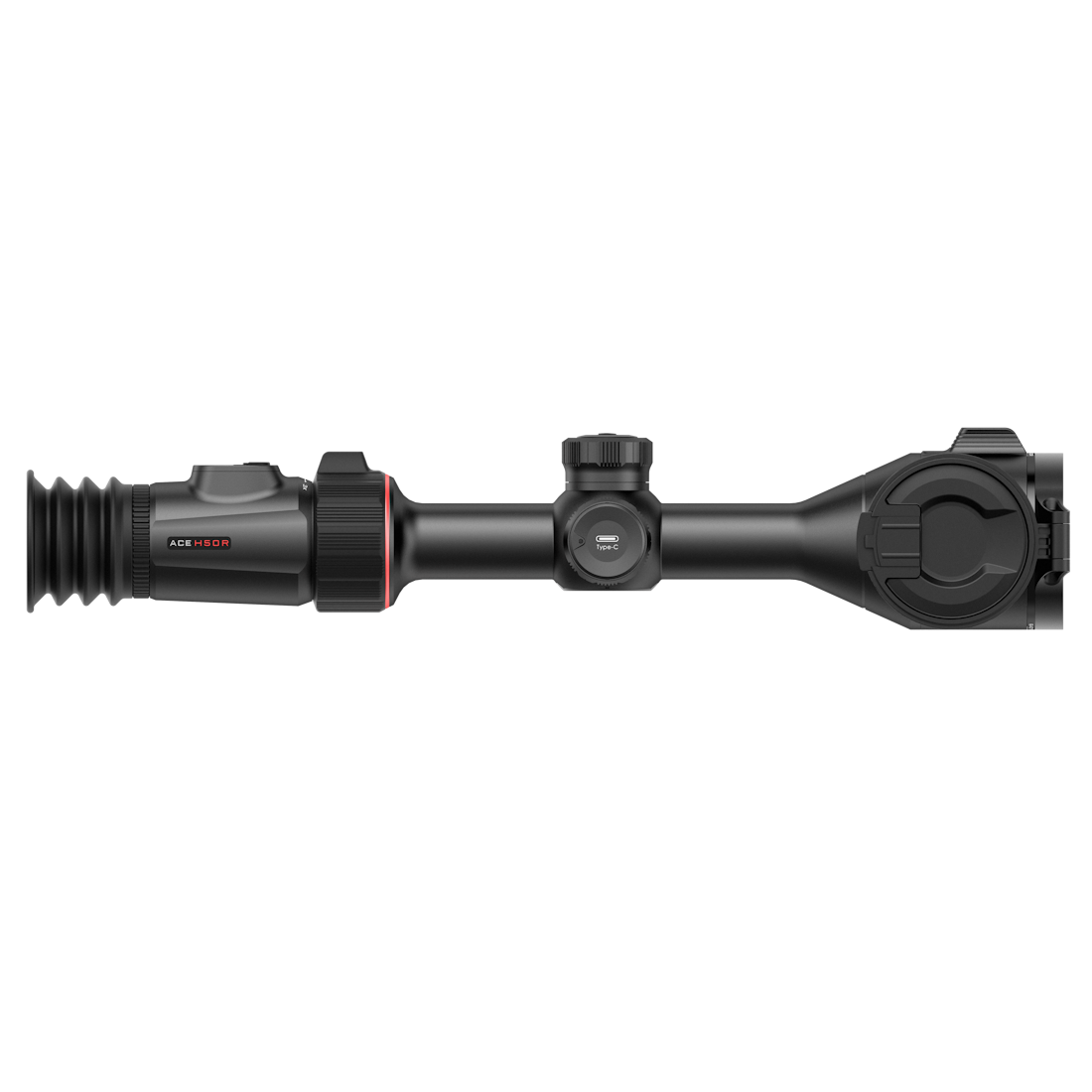

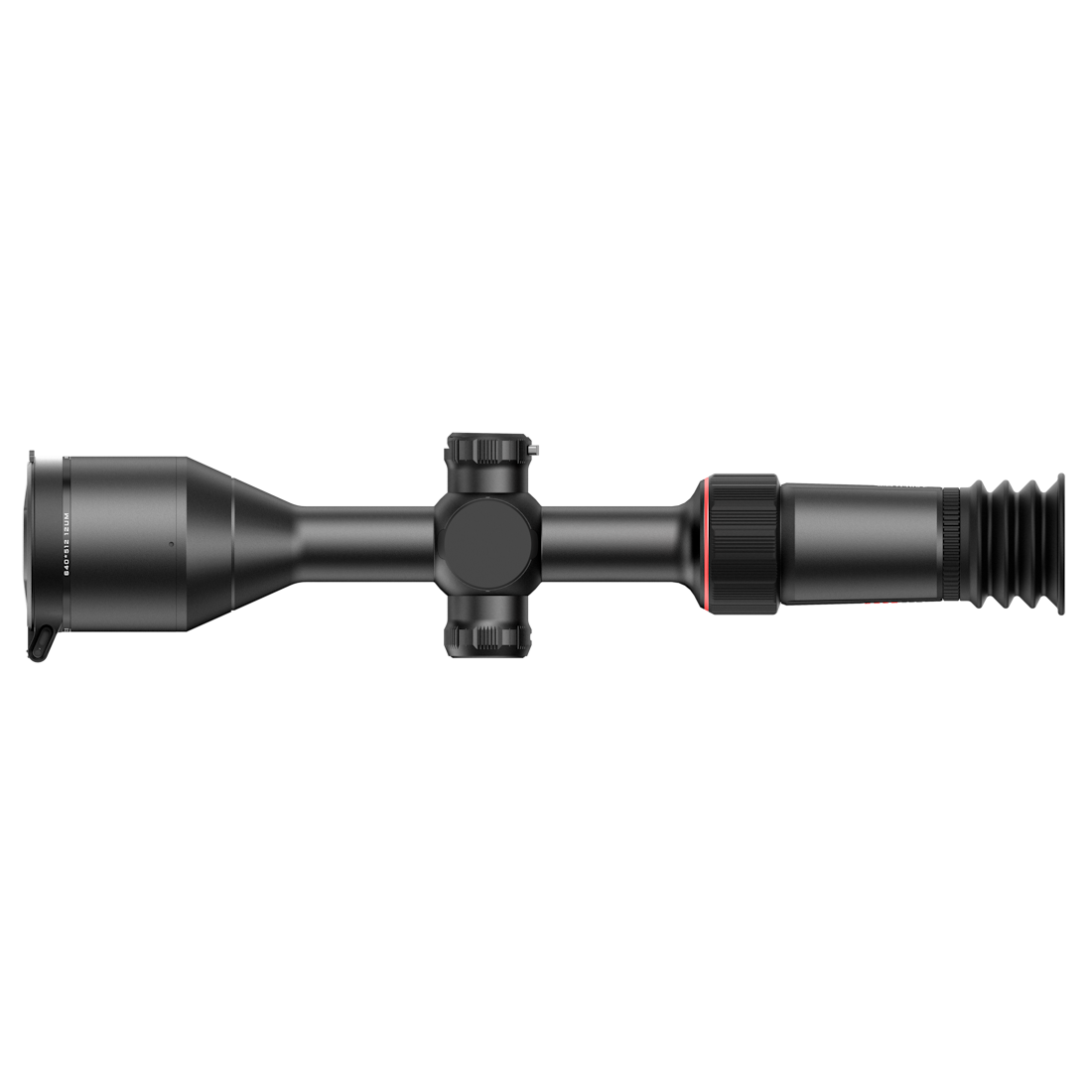

Nocpix ACE H50R Thermal Scope

Designed and tested for Australian conditions, the Nocpix ACE H50R Thermal Scope delivers long-range thermal performance, rugged construction and intelligent imaging for professional pest control and precision hunting. Combining advanced thermal clarity with an integrated laser rangefinder, it’s built for situations where reliability, accuracy and range matter most.

Ideal for pig hunting, wild dog control and long-range thermal work, the ACE H50R provides a strong balance of image quality, detection range and ballistic capability for serious field use.

Why Choose the Nocpix ACE H50R?

• High-sensitivity 640 × 512 @12µm thermal sensor
• Detection range up to 2600m
• Integrated 1200m laser rangefinder with ballistic calculation
• Reality+ AI image processing for enhanced clarity
• Smooth 60Hz refresh rate for tracking movement
• Built for hunting and pest control in Australia

Precision Thermal Imaging for Long-Range Use

The ACE H50R is engineered for shooters and hunters who demand confident identification at distance. Its 640 × 512 @12µm thermal sensor with NETD ≤15mK delivers exceptional heat sensitivity, revealing fine detail through fog, dust and complete darkness.

Paired with a 50mm F0.9 Germanium lens, the system provides a detection range of up to 2600 metres, maintaining clarity across open paddocks, treelines and long shooting lanes.

Integrated Laser Rangefinder & Ballistic Support

A built-in 1200m laser rangefinder delivers fast, accurate distance measurements aligned directly with the optical axis. This ensures precise point-to-point ranging and supports confident decision-making when assessing targets at extended range.

The integrated ballistic calculator uses this data to provide real-time holdover and drop information, helping achieve accurate and repeatable shot placement.

High-Definition Display & Image Processing

The ACE H50R features a 1.03″ 2560 × 2560 AMOLED display, delivering smooth, distortion-free viewing with strong contrast and detail. Combined with Vision+ imaging and the Reality+ AI algorithm, background noise is reduced while fine thermal gradients are enhanced, producing a clean and usable image in all conditions.

Six selectable thermal colour palettes — White Hot, Black Hot, Red Hot, Fusion, Green Monochrome and Red Monochrome — allow the display to be tailored to terrain, lighting and personal preference.

Built for Australian Field Conditions

Constructed from magnesium alloy and rated IP67, the ACE H50R is fully waterproof and dustproof. It is built to handle harsh Australian environments, including rain, dust, vibration and heavy recoil up to .375 H&H, making it suitable for demanding hunting and pest management work.

Power, Recording & Connectivity

A dual battery system combining a built-in 4000mAh battery with a replaceable 18650 cell provides up to 7 hours of runtime, with quick battery swaps to keep you operational through long nights.

The ACE H50R supports photo, video and audio recording, stored to 64GB of internal memory. Wi-Fi connectivity and the Nocpix app allow live streaming, file transfer and firmware updates directly from your mobile device.

Key Specifications

• Thermal Sensor: 640 × 512 @12µm
• NETD: ≤15mK
• Frame Rate: 60Hz
• Lens: 50mm F0.9
• Magnification: 3×–24×
• Detection Range: Up to 2600m
• Display: 1.03″ AMOLED, 2560 × 2560
• Laser Rangefinder: Integrated, up to 1200m
• Ballistic Calculation: Yes
• Battery System: Built-in 4000mAh + replaceable 18650
• Runtime: Up to 7 hours
• Recording: Photo, video and audio
• Storage: 64GB internal
• Wi-Fi / App: Yes (Nocpix App)
• Housing: Magnesium alloy
• Protection Rating: IP67 waterproof and dustproof
• Weight: 1120g with battery
• Dimensions: 365 × 90 × 68 mm
