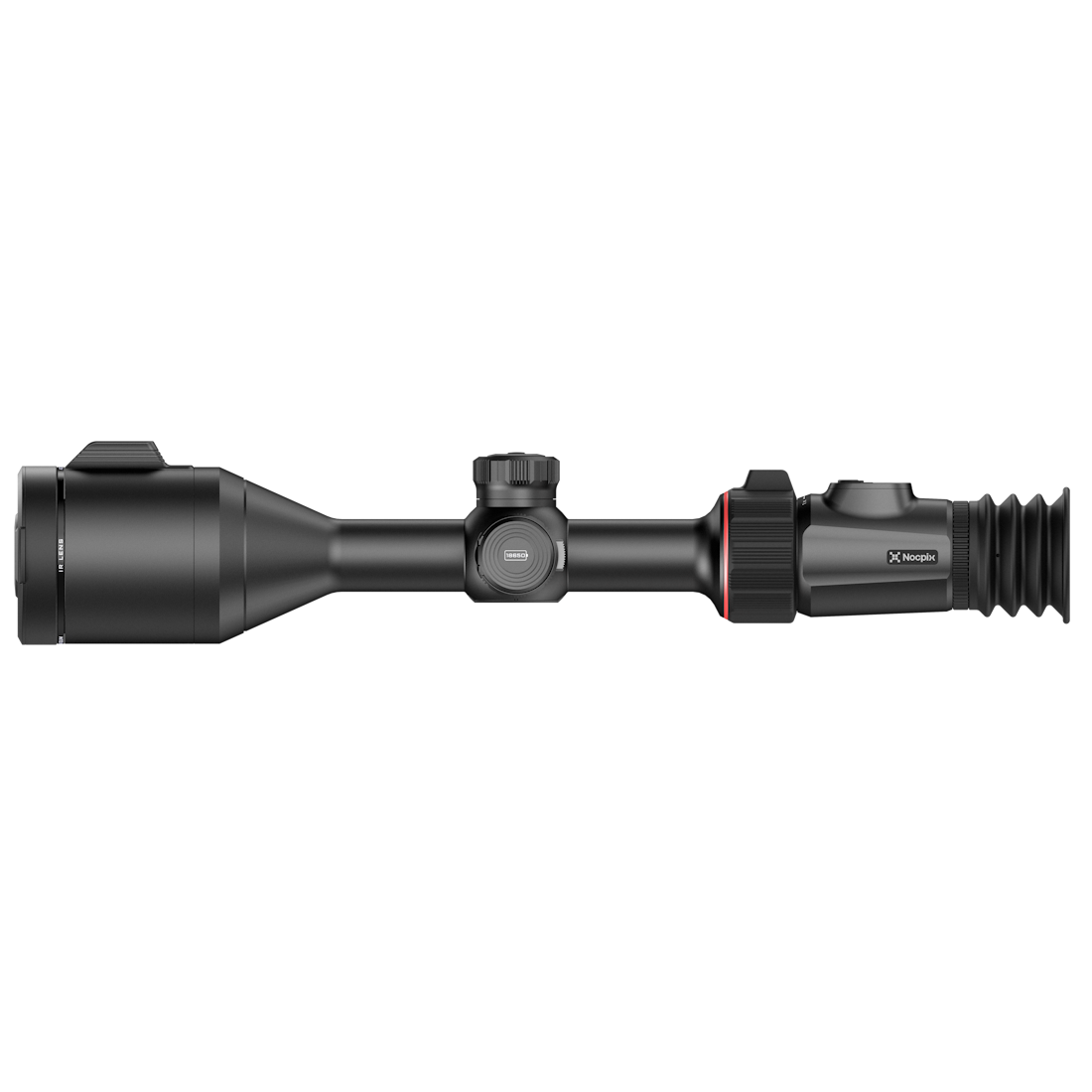

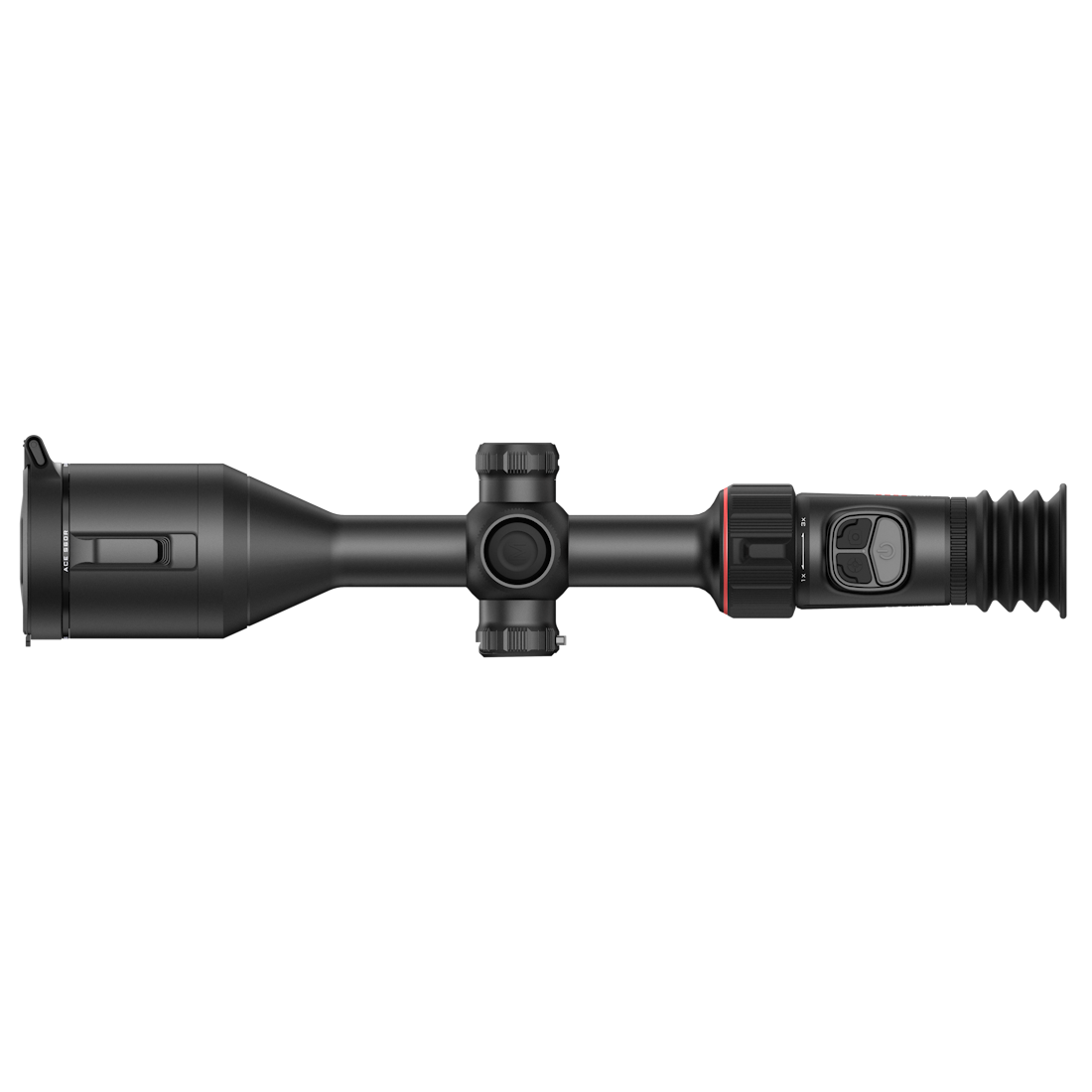

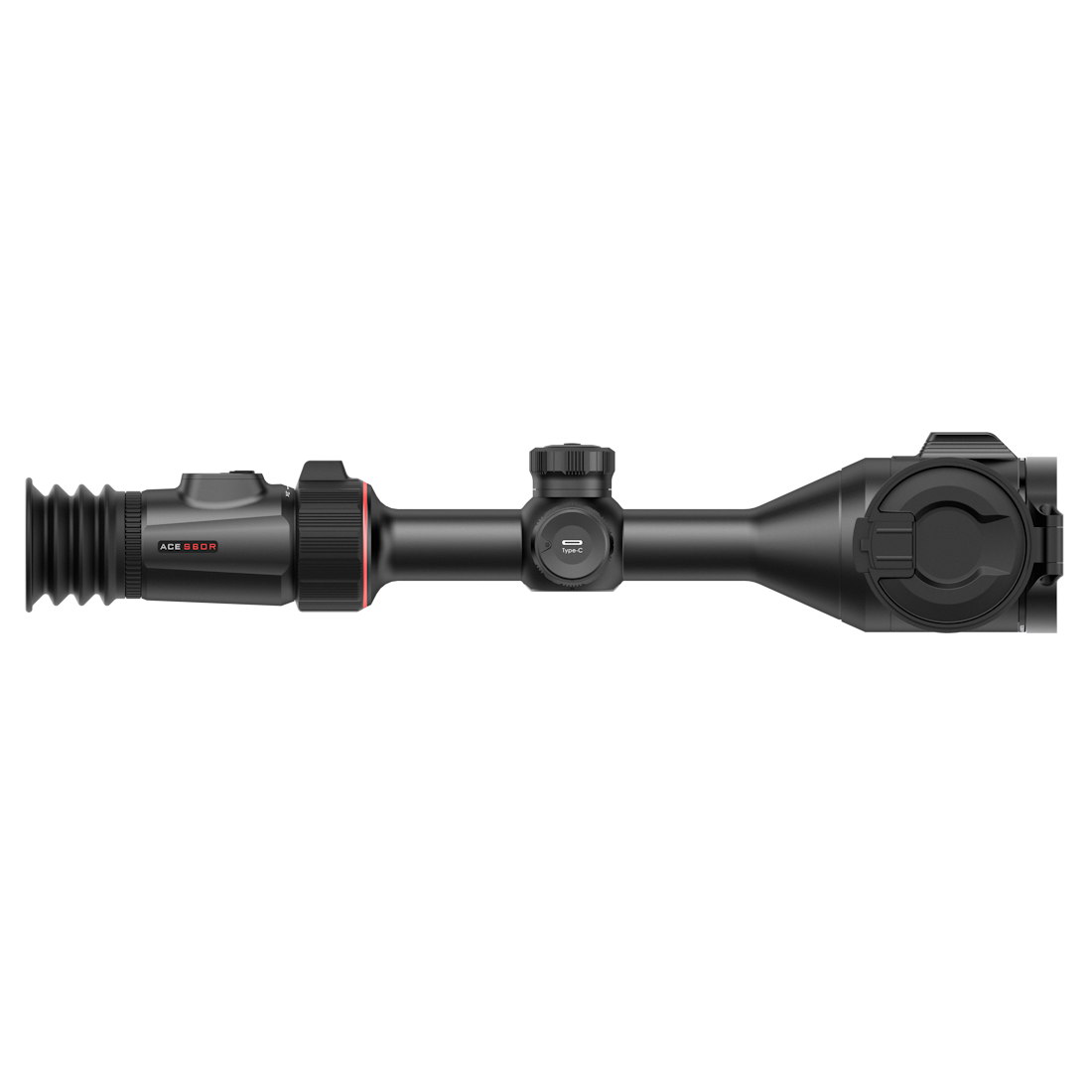

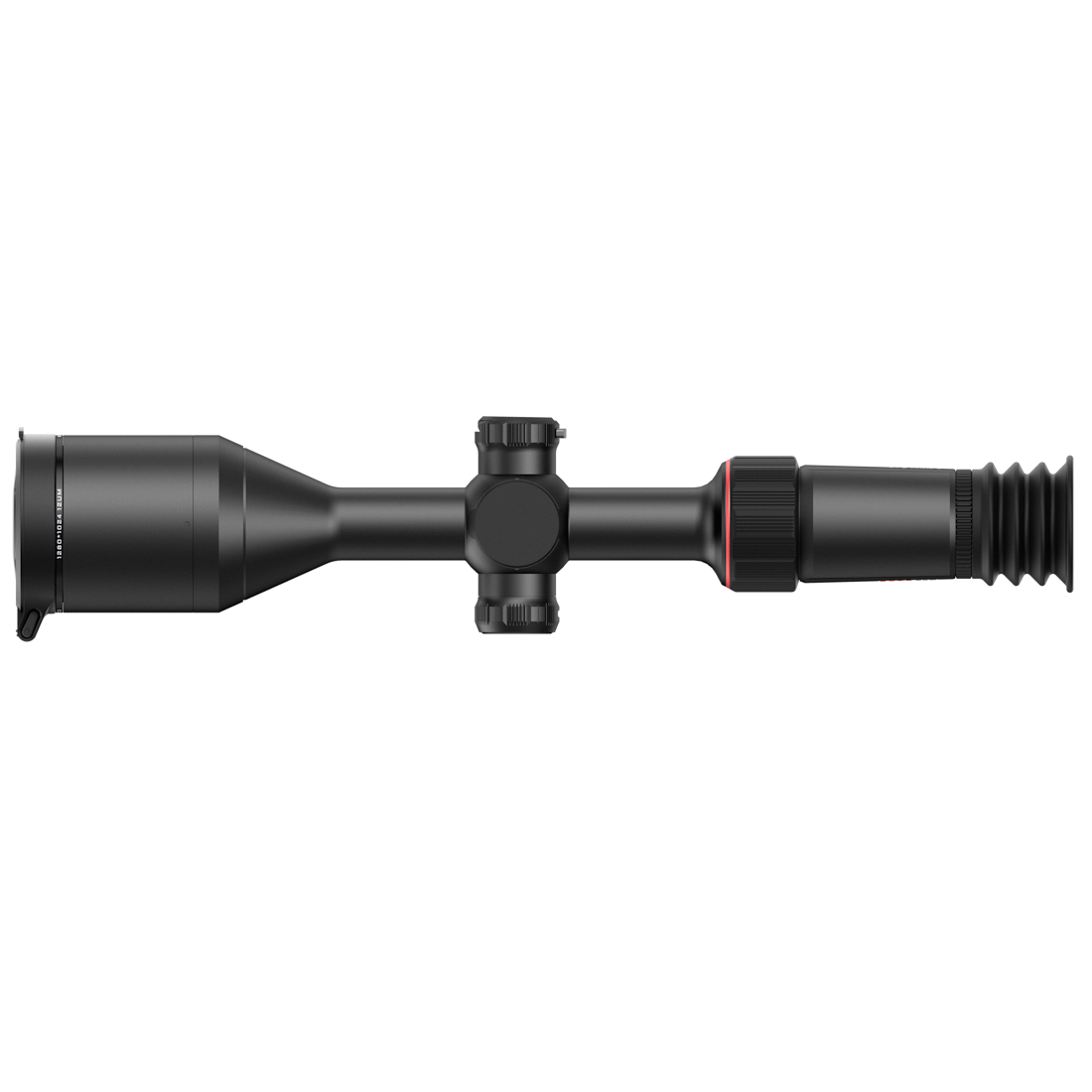

Nocpix ACE S60R Thermal Scope
Choose options
Step into advanced thermal imaging with the Nocpix ACE S60R Thermal Scope, featuring a high-resolution 1280 × 1024 @12µm sensor, Reality+ AI image processing, and an integrated 1200m laser rangefinder. Designed for serious night hunting and professional field use, it delivers consistent clarity across open paddocks, ridgelines and mixed terrain.
Built for pig hunting, wild dog control and long-range thermal work, the ACE S60R combines ultra-high resolution imaging with true optical zoom and ballistic support for confident performance in demanding Australian conditions.
Why Choose the Nocpix ACE S60R?
- Ultra-high-resolution 1280 × 1024 thermal sensor
- Long 2800m detection range
- Integrated 1200m laser rangefinder with ballistic calculation
- Reality+ AI image processing for enhanced clarity
- True ocular zoom (1–3×) for distortion-free magnification
- Built for serious hunting and pest control in Australia
High-Resolution Thermal Imaging
The ACE S60R is built around a 1280 × 1024 @12µm thermal sensor with NETD ≤20mK, delivering detailed, high-contrast thermal imagery. Fine heat signatures, subtle movement and clear target outlines remain visible across changing terrain, vegetation and weather conditions.
With a detection range of up to 2800 metres, the S60R performs confidently in open paddocks and large properties while maintaining usable clarity in scrub and timbered areas.
Reality+ AI Image Enhancement
Powered by Reality+ AI imaging, the ACE S60R enhances fine detail while reducing background thermal noise. This results in a cleaner, sharper image that improves identification and situational awareness when tracking animals or scanning large areas.
Vision+ System with True Ocular Zoom
The Vision+ system combines a 1.03″ 2560 × 2560 AMOLED circular display with true ocular zoom (1–3×). Unlike digital zoom, this optical zoom provides genuine magnification without distortion, delivering sharper close-up detail, a wider usable field of view and reduced eye strain during extended sessions.
Detection, Ranging & Ballistic Support
An integrated 1200m laser rangefinder delivers fast, accurate distance measurement aligned directly with the optical axis. This data feeds into the built-in ballistic calculator, providing real-time holdover and drop information for precise shot placement at extended distances.
Built for Extended Field Use
Designed for long nights in the field, the ACE S60R features a dual battery system combining a built-in 4000mAh battery with a replaceable 18650 cell, delivering up to 7 hours of runtime.
Additional field-focused features include recoil-activated video recording, ballistic support and automatic screen shutdown to conserve power when not actively in use.
Rugged, Field-Ready Construction
Crafted from high-strength aluminium alloy, the ACE S60R is built to withstand heavy recoil and harsh environments. Its IP67 waterproof and dustproof rating ensures reliable operation in rain, dust, heat and demanding Australian conditions.
A shutterless sensor design supports silent operation, eliminating interruptions during observation and helping maintain continuous situational awareness in the field.
Key Specifications
- Sensor Resolution: 1280 × 1024 @12µm
- NETD: ≤20mK
- Frame Rate: 60Hz
- Lens: 60mm F0.9 Germanium
- Magnification: 2×–18×
- Ocular Zoom: 1–3×
- Detection Range: Up to 2800m
- Display: 1.03″ AMOLED, 2560 × 2560 (Circular)
- Exit Pupil Diameter: 8mm
- Eye Relief: 50mm
- Diopter Adjustment: −5 to +5
- Laser Rangefinder: Integrated, up to 1200m
- Ballistic Calculation: Yes
- Recording: Photo, video and audio
- Memory: 64GB internal
- Wi-Fi & App Support: Yes
- Battery System: Built-in 4000mAh + replaceable 18650
- Runtime: Up to 7 hours at 22°C
- Weight: 1120g with battery
- Dimensions: 365 × 90 × 68 mm
- Protection Rating: IP67 waterproof and dustproof
