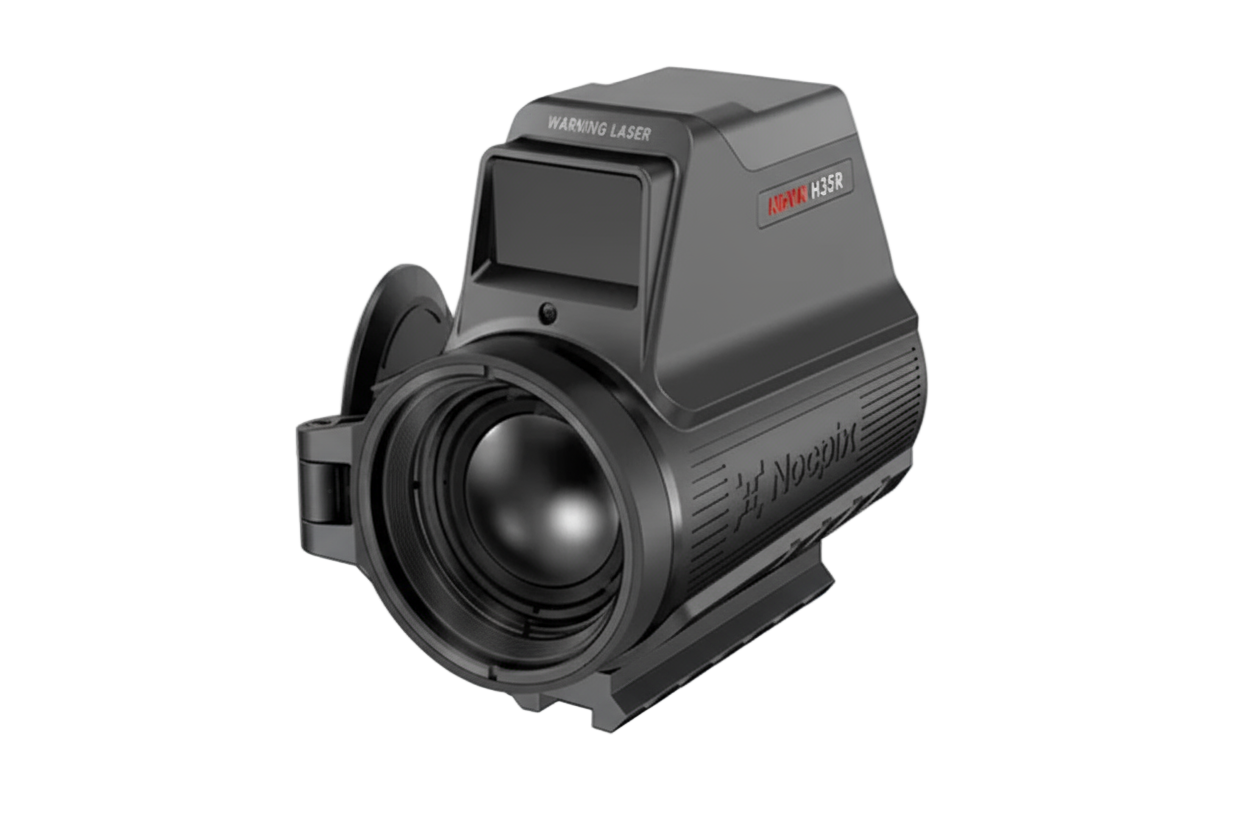

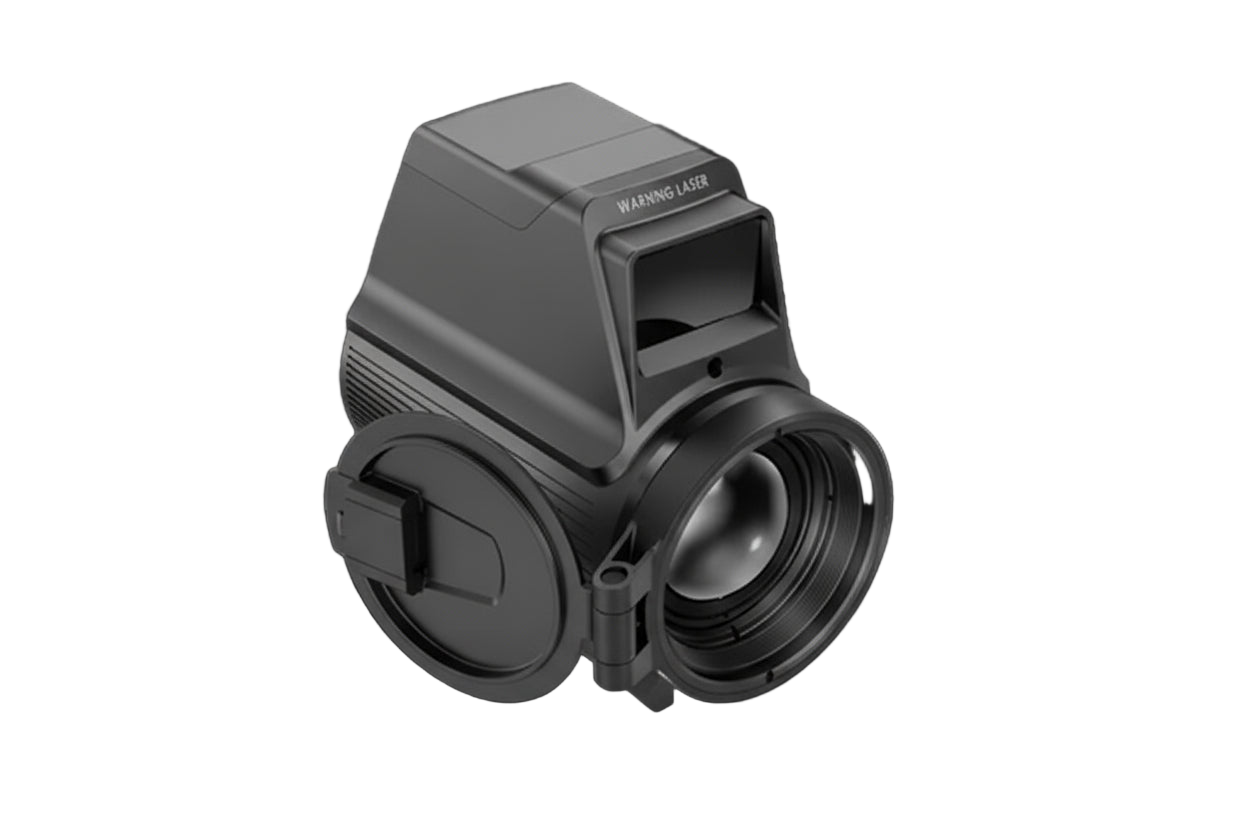

Nocpix NOVA H35R Vehicle - Mounted Thermal Imaging System

Enhance mobile thermal detection with the Nocpix NOVA H35R, a vehicle-mounted thermal imaging system designed for scanning and tracking from utes, buggies and patrol vehicles. Featuring a 640 × 512 @12µm thermal sensor, ultra-low NETD ≤15mK, and an integrated 1200m laser rangefinder, it delivers stable, high-contrast thermal imagery day or night in harsh Australian conditions.

Built for vehicle-based pest control, property surveillance, wildlife monitoring and search operations, the NOVA H35R is purpose-designed for mobile thermal use where stable imaging and rapid target detection matter most.

Why Choose the Nocpix NOVA H35R?

• Vehicle-mounted 640 × 512 @12µm thermal system
• Integrated 1200m laser rangefinder
• Detection range up to 1800m
• Electronic Image Stabilisation (EIS) for smoother viewing on the move
• 5GHz Wi-Fi for ultra-low-latency live streaming
• Built for Australian off-road and field conditions

Vehicle-Mounted Thermal Detection

The NOVA H35R is purpose-built for mobile thermal scanning and observation. Its 640 × 512 @12µm thermal sensor with NETD ≤15mK delivers crisp heat detection and strong contrast, allowing reliable identification of animals, vehicles and movement through dust, fog, rain and darkness.

With a 35mm fixed-focus F1.0 lens, the NOVA provides clear imagery from 30m to 300m without the need for manual focus, helping maintain consistent clarity during vibration, temperature changes and continuous vehicle movement.

Integrated Laser Rangefinder & Targeting

Equipped with an integrated 1200m laser rangefinder and Class 2 laser pointer, the NOVA H35R delivers fast, accurate distance measurement and precise target location. This supports confident identification and improved situational awareness when scanning large areas or open terrain from a moving platform.

Stable Vision While Moving

Designed for use on the move, the NOVA features Electronic Image Stabilisation (EIS) to maintain a smoother, steadier image even over rough ground. Combined with shutterless technology, it helps eliminate image freeze or interruptions during scanning.

Real-time thermal video is streamed via 5GHz Wi-Fi with ultra-low latency, providing instant visual feedback when covering large areas from a vehicle.

Rugged, Vehicle-Ready Construction

Built from aircraft-grade aluminium with reinforced connectors, the NOVA H35R is engineered for long-term off-road use. Its IP67 waterproof and dustproof rating ensures dependable operation in rain, dust, heat and vibration, making it well suited to utes, buggies, patrol vehicles and utility platforms.

Smart Control & Simple Integration

The NOVA connects directly to a mobile device via the Nocpix app, allowing live view, mode selection and system updates in a simple and practical interface.

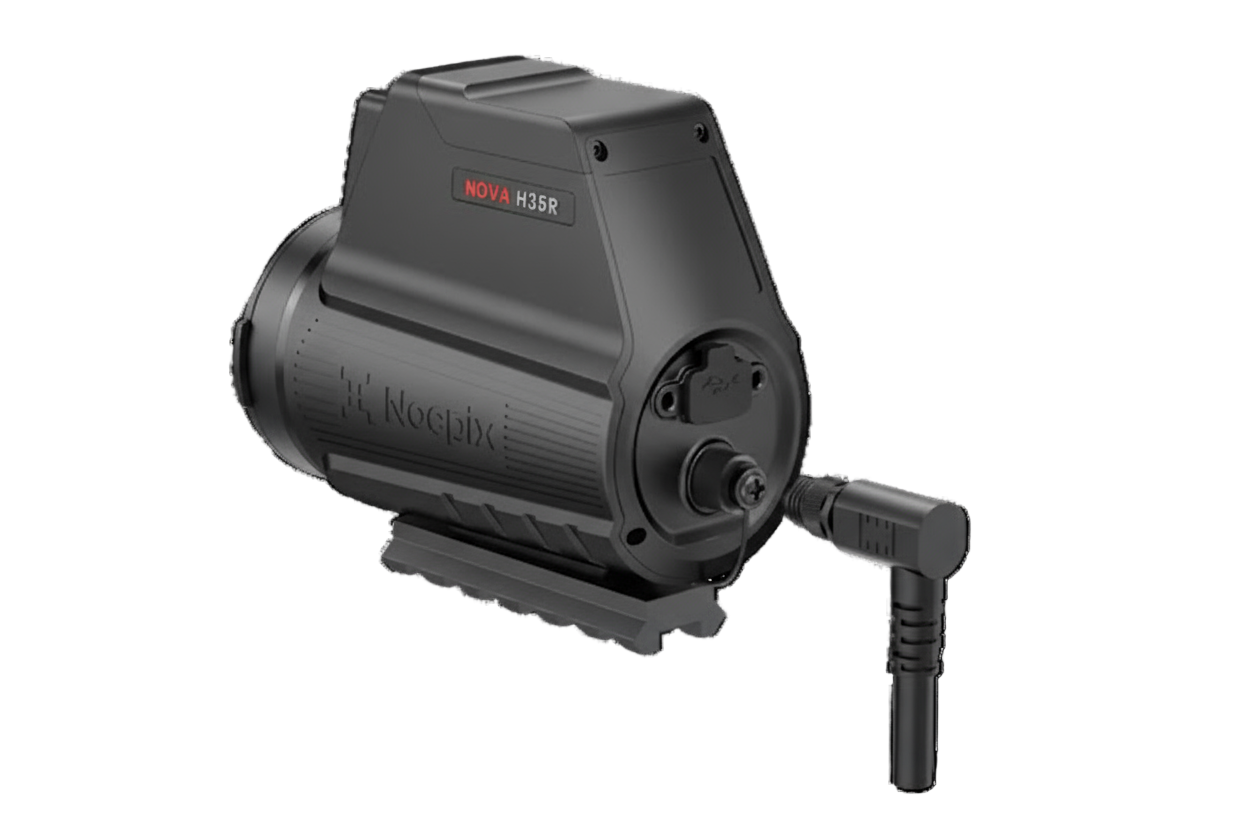

Powered by a DC 12–24V supply, the unit integrates easily into vehicle electrical systems and is well suited to pest control, wildlife monitoring, search and rescue and rural property surveillance.

Important Mounting Note

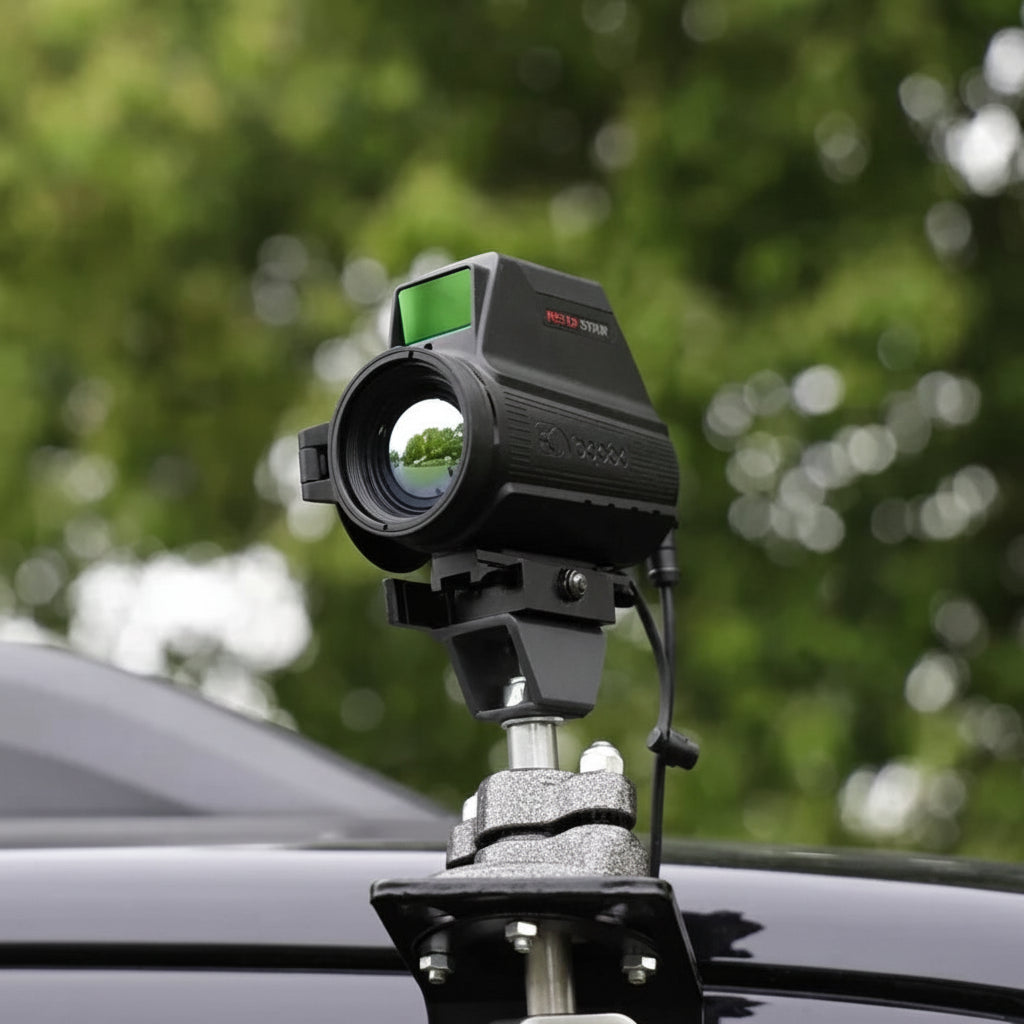

The Nocpix NOVA H35R does not include a roof mount. It features an integrated Picatinny rail for attachment to compatible mounting systems, so a suitable mounting kit must be purchased separately.

Key Specifications

• Thermal Sensor: 640 × 512 @12µm
• NETD: ≤15mK
• Frame Rate: 50Hz
• Lens: 35mm F1.0 (fixed focus)
• Magnification: 1× / 2× / 3×
• Detection Range: Up to 1800m
• Field of View: 12.5° × 10.0°
• Optimal Imaging Range: ≥20m
• Laser Rangefinder: Integrated, up to 1200m
• Laser Pointer: Class 2
• Image Stabilisation: Electronic (EIS)
• Wi-Fi: 5GHz
• Power Supply: DC 12–24V
• Operating Temperature: −20°C to +60°C
• Protection Rating: IP67 waterproof and dustproof
• Weight: 427g
• Dimensions: 60.8 × 98 × 90 mm
