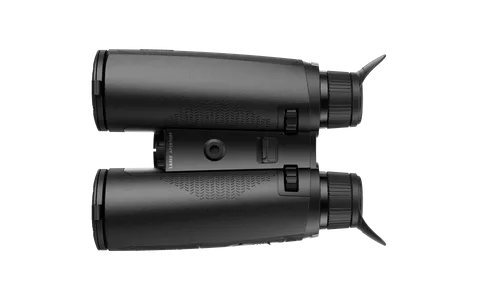

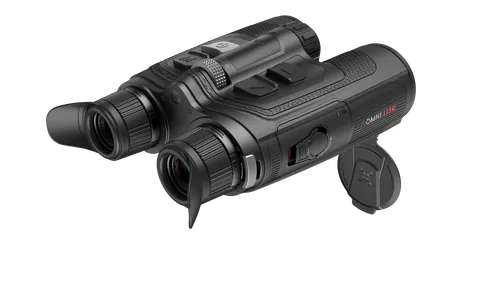

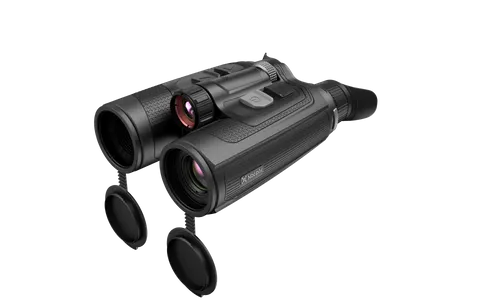

Nocpix OMNI L19R Multispectral Binocular

The Nocpix OMNI L19R combines thermal imaging and 8K digital day/night vision in one multispectral binocular, with an integrated laser rangefinder and ballistic calculator.

Featuring a 384 × 288, 12μm thermal sensor and 19mm F0.9 thermal lens, the L19R provides wide-area thermal scanning alongside detailed digital observation for hunting, pest control and wildlife monitoring.

Thermal & Digital Night Vision

Switch between thermal and digital viewing at the press of a button. The thermal channel helps locate heat signatures, while the 8K digital sensor and 50mm F1.8 lens provide detailed viewing in daylight, twilight and night-time conditions.

NETD ≤15mK thermal sensitivity helps reveal subtle temperature differences, with a detection range of up to 986m.

Rangefinder & Ballistic Calculator

The integrated laser rangefinder measures distances up to 1000m, providing a distance reference during observation. The ballistic calculator adds supporting information for users assessing targets across varied terrain.

Stable Viewing & Simple Controls

Electronic Image Stabilisation helps reduce handheld image movement during scanning and closer observation. A four-button interface keeps key functions accessible, while fast startup supports quick deployment in the field.

The AMOLED display provides clear viewing, with onboard recording, 64GB internal storage and WiFi app connectivity for capturing and sharing observations.

Battery Power & Extended Observation

An internal battery and replaceable external batteries provide up to 7.5 hours of operation. The dual battery system supports longer observation sessions and allows external battery changes in the field.

Key Specifications

• Model: Nocpix OMNI L19R

• Type: Multispectral binocular

• Thermal Sensor: 384 × 288, 12μm

• NETD: ≤15mK

• Thermal Lens: 19mm F0.9

• Thermal Magnification: 1.5×–12×

• Thermal FOV: 12.5° × 9.4° / 21.9 × 16.5m at 100m

• Thermal Refresh Rate: 50Hz

• Detection Range: Up to 986m

• Digital Sensor: 8192 × 6144

• Digital Lens: 50mm F1.8

• Digital Magnification: 3×–18×

• Digital FOV: 8.8° × 6.6° / 15.4 × 11.5m at 100m

• Display: AMOLED

• Electronic Image Stabilisation: Yes

• Laser Rangefinder: Up to 1000m

• Ballistic Calculator: Yes

• Controls: Four-button interface

• Internal Storage: 64GB

• Recording: Onboard photo and video

• WiFi / App Connectivity: Yes

• Battery System: Internal battery with replaceable external 18650 batteries

• Runtime: Up to 7.5 hours

What’s Included

• Nocpix OMNI L19R Multispectral Binocular

The Nocpix OMNI L19R is a practical multispectral option for users wanting wide-area thermal scanning, detailed digital day/night observation, ranging and ballistic references in one binocular.
