Nocpix QUEST H35R Thermal Binocular

The Nocpix QUEST H35R redefines portable thermal imaging with a balance of reach, precision and ergonomic design. Lightweight and field-ready, it delivers dependable detection out to 1800 metres and features a concealed 1000m laser rangefinder, making it well suited to hunters, landholders and pest management professionals who need mobility without sacrificing performance.

Built for pig hunting, deer spotting, property surveillance and pest control, the QUEST H35R offers premium handheld thermal performance in a compact binocular-style platform designed for real-world Australian conditions.

Why Choose the Nocpix QUEST H35R?

• High-performance 640 × 512 @12µm thermal sensor
• Detection range up to 1800m
• Concealed 1000m laser rangefinder
• Smooth 60Hz refresh rate for tracking movement
• Comfortable one-hand operation with ergonomic binocular design
• Built for hunting and pest control in Australia

Lightweight Long-Range Performance

The QUEST H35R is designed for efficient long-range scanning in a compact binocular-style form. With a detection range of up to 1800 metres and an integrated concealed 1000m laser rangefinder, it provides reliable ranging and identification for open country, vehicle-based observation and tripod use.

Its combination of portability and reach makes it a strong option for hunters and land managers who need capable handheld thermal performance without excess bulk.

High-Sensitivity Thermal Imaging & AI Processing

The QUEST H35R is equipped with a high-performance 640 × 512 @12µm thermal sensor with NETD ≤15mK and a 60Hz frame rate, delivering clear heat definition and reliable image detail. Reality+ AI image processing enhances fine detail, reduces noise and preserves natural textures, allowing confident identification of animals, terrain and movement without image distortion.

Immersive AMOLED Viewing Experience

A 0.72″ round AMOLED display with 1920 × 1200 resolution delivers a bright, immersive image that feels natural and familiar during use. This display format helps make extended observation more comfortable and intuitive in the field.

The 60Hz refresh rate ensures smooth image transitions, reducing lag and motion blur when tracking fast-moving animals or scanning large areas.

Compact and Lightweight Construction

Weighing approximately 700g and measuring 175 × 138 × 66mm, the QUEST H35R is built to reduce fatigue during extended observation sessions. Its internal magnesium alloy frame combined with a protective silicone outer shell delivers durability without unnecessary bulk, supporting long-term field use.

One-Hand Operation

Designed for intuitive one-hand use, the QUEST H35R operates much like traditional binoculars. A centrally positioned zoom lever allows smooth adjustment with a single finger, even while wearing gloves. With only four streamlined buttons, users can easily focus, zoom and range with minimal movement, improving efficiency and situational awareness in the field.

Ergonomic Binocular-Style Design

Shaped to mirror the natural grip of optical binoculars, the QUEST H35R sits comfortably in hand during long sessions. The contoured housing and grippy silicone shell provide stability and comfort whether scanning from a vehicle or operating on foot.

Key Specifications

• Thermal Sensor: 640 × 512 @12µm
• NETD: ≤15mK
• Objective Lens: 35mm F0.9
• Optical Magnification: 3×–24×
• Detection Range: Up to 1800m
• Laser Rangefinder: Integrated, concealed, up to 1000m
• Display: 0.72″ AMOLED, 1920 × 1200 (Round)
• Field of View: 12.5° × 10°

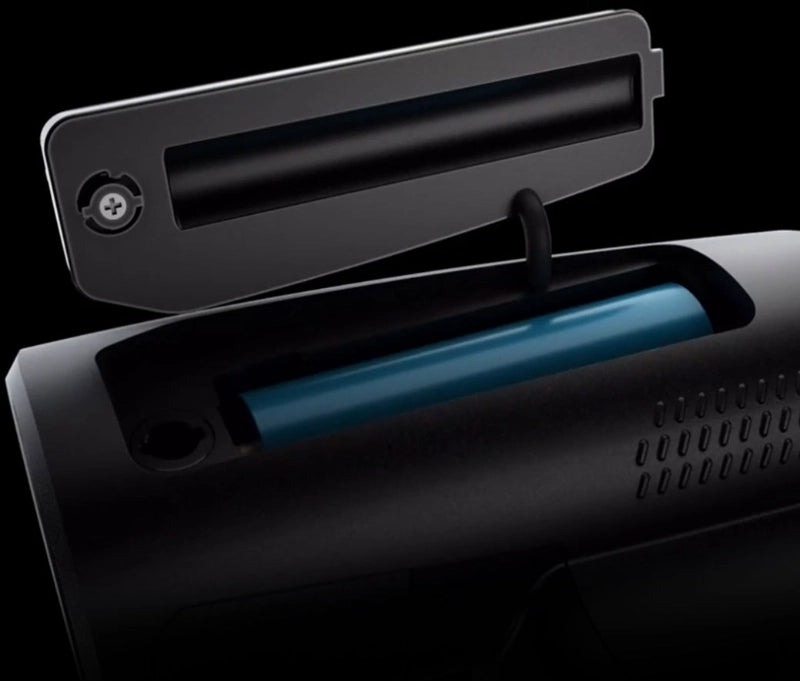

• Battery: Replaceable 18650 Li-ion
• Weight: Approx. 700g
• Dimensions: 175 × 138 × 66 mm
• Construction: Magnesium alloy frame with ergonomic silicone shell
